WJ-980DW DMX CONTROLLER

● Using Ethernet interface and UDP network protocol, the maximum transmission distance is 100 meters.
● The display module displays the controller parameters and status in time.
● The controller output is compatible with TTL level signal and differential signal dual mode.
● 32-65536 gray level control, which can truly restore the color and details of the image.
● 512 levels of three primary colors independent brightness control, making precise adjustment of white balance easier and more effective.
● A variety of chip controls are integrated , and the control chip type , clock frequency , OE period , duty cycle , gray level and other parameters can be changed through software settings.

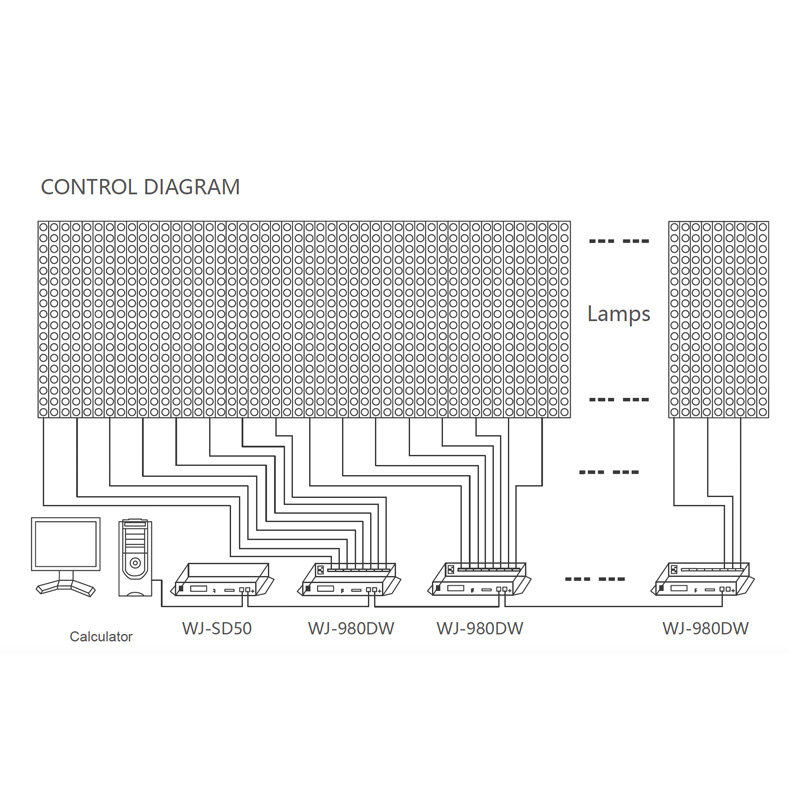

● Dual network interface , can realize the cascade connection between controllers ; the controller automatically detects , the software visually displays the connection status ; supports DMX 512 A P/UCS 512
● Drive chip and support online addressing of control system.
● Each portcand rive 170 points , 512 channels.
● Hardware anti-gamma correction function adjusted according to human physiological visual characteristics.
● 100Hz refresh rate can ensure the stability of the picture.
● 8-port output , each port is isolated.
