This is the first large-scale exhibition greenhouse with glulam structure in China, and it is also the largest glulam structure building structure in China. The greenhouse dome composed of wooden grids has uneven spacing between segments. Because of its novel design and difficult construction, it is the only Chinese project that has been awarded the best project in the world.

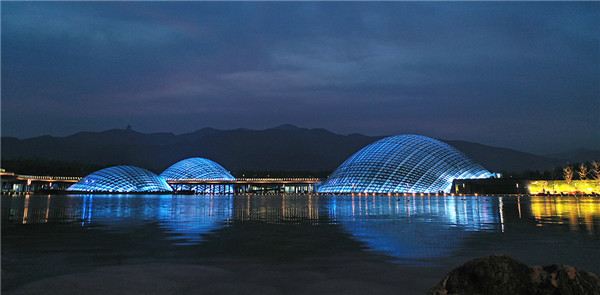

The three "dew" spheres of Taiyuan Botanical Garden won the Building Structural Skill Award at the 2021 World Structural Awards. In December, the main entrance project of Taiyuan Botanical Garden won the "China Steel Structure Gold Award", which is the highest honor award for engineering quality in China's construction steel structure industry.
In addition, Taiyuan Botanical Garden has also won several international and domestic awards such as ENR Global Best Project and Aladdin Magic Lamp Award. It is a national popular science education base and a Shanxi popular science education base.
The intelligent control system designed by WANJIN lighting for the project should be advanced in technology, high in automation, stable in operation, safe and reliable, easy to operate, simple to maintain, and easy to install and expand.
On the premise of reliability, the lighting control system must be reasonably economical, and the economics of the lighting control system is reflected in the low initial investment, low operating costs for system operation and maintenance, and energy saving.
Low-carbon lighting requires users to save the use of lights to the maximum extent, that is, to provide appropriate lighting according to the user's vision and behavior requirements at the time and place where lighting is needed, so that there is an intelligent lighting control that can be adjusted.
Lighting Design Innovation Points
Application of new technology
All lamps are controlled by DMX512; LED intelligently controllable; wide selection of beam angles; effective combination of anti-glare devices and lamps; maximizing light efficiency.
The projection system is an interactive system between the participants and the landscape carrier, which enables multiple participants to integrate into the scene and participate in the game at the same time.
The interaction between lighting and water features, the interaction between lighting and sound, the interaction between lighting and the environment, and the interaction between lighting and the crowd. We realize the interaction between lighting and human-machine through interactive projection technology.
New technology
metal steel pipe connection technology, waterproof technology of cable branch joint junction box, underwater cable joint waterproof technology, cable conveyor laying large-section cable construction technology, cable laying and cold shrinkage, heat shrinkable cable head production technology, New technologies such as the overall installation technology of large-scale equipment, combination of light and sculpture; combination of light and urban facilities; light and lighting equipment, diversity, viewing, and application;
effective combination of anti-glare devices and lamps; The link back groove is used to hide the link line between the lamp and the lamp, and the lamp body is tightly combined. The lamp adopts a double-layer cavity, which fully utilizes and amplifies the chimney effect, and has a stronger heat dissipation capacity. The sandwich cavity design is used for effective application Chimney effect, enhance heat dissipation, three-dimensional grille, anti-glare effect is more obvious.)
Application of new materials and new equipment Lamp body shell
Mask: 1. PC material; 2. Tempered glass (face cover) Light pole: stainless steel plate, aluminum profile, aluminum die-casting (all treated with fluorocarbon spraying) Reflector: Germany An aluminum reflector, imported acrylic lens Waterproof ring: imported silicone gasket Lightning protection device: professional protection components for induced lightning strikes and static electricity
Project actual operation evaluation
Taiyuan Botanical Garden lighting project. The botanical garden will replace the former industrial wasteland, creating a vibrant landscape with mountains and diverse vegetation combined with lakes, waterfalls, trails and buildings. Nature and architecture are integrated, and "green" becomes the theme.
After the opening of the Botanical Garden, it will have very important practical and strategic significance to improve the types of parks in Dayuan City, enhance the city's taste, improve the urban ecological environment, and build a city of green mountains and rivers, as well as a harmonious and livable city.
It should conform to the urban nature of Taiyuan's national garden city and national historical and cultural city, and reflect the Taiyuan urban spirit.
The botanical garden represents the symbol of ecological and cultural tourism, leisure natural ecological landscape recreation, and modern urban LOHAS. Night is a part of human life. Busy life during the day and leisure and relaxation at night. Light makes up for the lack of landscape leisure functions due to busyness during the day.
The project aims to create a unique green open space and its attractive leisure and entertainment space to serve the urban residents of Taiyuan. The project can also serve as a model for future sustainable urban mixed-use development. The design unit is Huahui Engineering Design Group Co., Ltd.; the supervision unit is Shanghai Jianhao Engineering Consulting Co., Ltd.;
According to the overall environmental layout of Taiyuan Botanical Garden, the lighting design is controlled at 3000-4000K through the overall color temperature, which is used as the keynote of the light environment to reflect the new rhythm of the botanical garden. Local nodes use colored light RGB color-changing embellishments in a small range, and are controlled by the unified linkage of the control system. Uniform and interspersed with changes and highlights, so as to achieve different artistic effects and energy-saving effects.
